TGF-BXS-SI
CONTACT

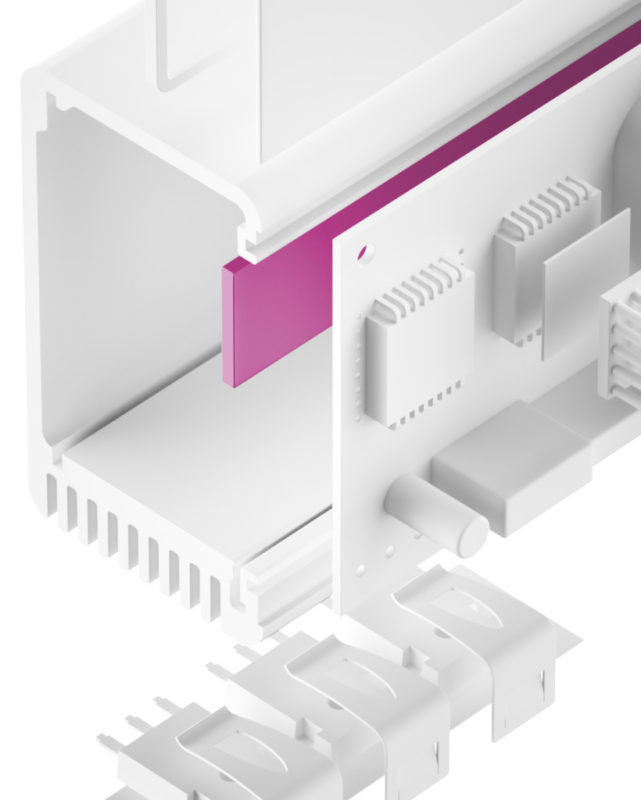

TGF-BXS-SI is an electrically insulating thermally conductive silicone gap filler. It is ideal for use in applications where thermal transfer over large gaps caused e.g. by big tolerances or different stack up heights must be achieved. Due to the specific formulation and filling with ceramic particles the silicone elastomer has a good thermal conductivity. Through its ultra softness and flexibility the material perfectly mates to irregular surfaces thus filling gaps at minimum pressure. By its use the total thermal resistance is minimised. The natural tackiness of the material allows for an easy and reliable pre-assembly. The optional PSA on one side provides for a strong adhesiveness.
- Ultra soft and compliable
- Thermal conductivity: 1.2 W/mK
- Operates at minimum pressure
- Extraordinary chemical resistance and longterm stability
- Shock-absorbing
- Easy mounting through self tackiness
- Two-side tacky or one-side adhesive
- Sheet 200 x 400 mm
- Tacky on both sides
(TGF-BXSXXXX-SI) - PSA adhesive on one side
(TGF-BXSXXXX-SI-A1) - Die cut parts
- Kiss cut parts on sheet
Thermal link of:
- SMD packages
- Through-hole vias
- Capacitors
- Electronic parts to heat pipes
For use in Automotive applications / Laptops / Medicine engineering / Industrial PCs
| Property | Unit | TGF-BXS0500-SI | TGF-BXS1000-SI | TGF-BXS1500-SI | TGF-BXS2000-SI | TGF-BXS3000-SI |
|---|---|---|---|---|---|---|
| Material | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | |
| Colour | Pink | Pink | Pink | Pink | Pink | |
| Thickness | mm | 0,5±0,10 | 1,0±0,10 | 1,5±0,15 | 2,0±0,20 | 3,0±0,30 |
| Density | g/cm³ | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 |
| Hardness | Shore 00 | 30 | 30 | 30 | 30 | 30 |
| UL Flammability | UL 94 | V0 | V0 | V0 | V0 | V0 |
| RoHS Conformity | 2015 / 863 / EU | Yes | Yes | Yes | Yes | Yes |
| Thermal | ||||||
| Resistance1 @ 35 PSI @ Thickness | °C-inch²/W (mm) | 0.31 (0.24) | 0.75 (0.58) | 1.00 (0.80) | 1.20 (0.92) | 1.95 (1.09) |
| Resistance1 @ 15 PSI @ Thickness | °C-inch²/W (mm) | 0.39 (0.30) | 0.90 (0.70) | 1.45 (1.01) | 1.81 (1.19) | 2.54 (1.57) |
| Resistance1 @ 7 PSI @ Thickness | °C-inch²/W (mm) | 0.48 (0.37) | 1.03 (0.80) | 1.70 (1.11) | 2.07 (1.35) | 2.80 (1.84) |
| Thermal Conductivity | W/mK | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Operating Temperature Range | °C | - 40 to + 150 | - 40 to + 150 | - 40 to + 150 | - 40 to + 150 | - 40 to + 150 |
| Electric | ||||||
| Dielectric Strength | kV / mm | > 6.5 | > 6.5 | > 6.5 | > 6.5 | > 6.5 |
| Volume Resistivity | Ohm - cm | 3.5 x 1012 | 3.5 x 1012 | 3.5 x 1012 | 3.5 x 1012 | 3.5 x 1012 |
| Dielectric Constant | @ 1 MHz | 3.87 | 3.87 | 3.87 | 3.87 | 3.87 |
